Advanced Demo

The goal of this notebook is to demonstrate how GraPE-Chem for a more advanced workflow and in the context of hyperparameter optimization. Specifically, we will have a look at global features and demonstrating how we used the BOHB (Bayesian Optimization with HyperBand) by [1] as implemented in Ray-Tune.

Using Global Features

A global feature is a type of data that, in the context of molecules and graphs, describes extra, graph level information. Specifically, global features are not the target of whatever problem a GNN tries to solve. For instance, if we use the QM9 dataset (link), we could use the heat capacity as our primary target and the Dipole moment as our global feature. These global features are then concatenated to the (last) latent representation of the GNN (after read-out). This simple introduction of the global features to the system has been shown to yield higher performance [2] without any new cost.

In the following, we will train a simple MPNN on the QM9 dataset using the heat capacity as our target and and the Dipole moment as a global feature.

from grape_chem.datasets import QM9

# The ids are based on the way it is stored in PyG
data = QM9(target_id=5, global_feature_id=0)

print('Some example features:\n')
print('SMILES: ', data.smiles[:10], '\n')
print('Heat capacity: ', data.target[:10], '\n')
print('Dipole moment: ',data.global_features[:10], '\n')

Some example features:

SMILES:  ['C#C' 'C#N' 'C=O' 'CC' 'CO' 'C#CC' 'CC#N' 'CC=O' 'NC=O' 'CCC']

Heat capacity:  [ 59.5248  48.7476  59.9891 109.5031  83.794  177.1963 160.7223 166.9728
 145.3078 227.1361]

Dipole moment:  tensor([0.0000, 1.6256, 1.8511, 0.0000, 2.8937, 2.1089, 0.0000, 1.5258, 0.7156,
        3.8266])

To reduce the computation time for this example, we will only consider a subset of 3000 SMILES from QM9. However, one can just skip the following step if the whole dataset is to be used:

from grape_chem.utils import DataSet


data = DataSet(smiles=data.smiles[:3000], target=data.target[:3000],
                           global_features=data.global_features[:3000])

We now prepare the data as usual:

train, val, test = data.split_and_scale(scale=True, split_type='random', seed=1234)

Initializing the model:

from grape_chem.models import MPNN

model = MPNN(node_in_dim=data.num_node_features, edge_in_dim=data.num_edge_features, num_global_feats=1)

Note that we must now specify how many global features we are adding, in addition to how many node and edge features we have. But the rest stays the same.

Let us now specify all the required training elements:

import torch
from grape_chem.utils import EarlyStopping
from torch.optim import lr_scheduler

# optimizer
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3, weight_decay=1e-6)


# Early stopper
early_stopper = EarlyStopping(patience=30, model_name='best_model')

# Learning rate scheduler
scheduler = lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.9, min_lr=0.0000000000001, patience=15)

We now train and plot the training/validation loss:

from grape_chem.utils import train_model

train_loss, val_loss = train_model(model = model,
                                  loss_func = 'mse',
                                  optimizer = optimizer,
                                  train_data_loader= train,
                                  val_data_loader = val,
                                  batch_size=300,
                                  epochs=300,
                                  early_stopper=early_stopper,
                                   scheduler=scheduler)

model.load_state_dict(torch.load('best_model.pt'))

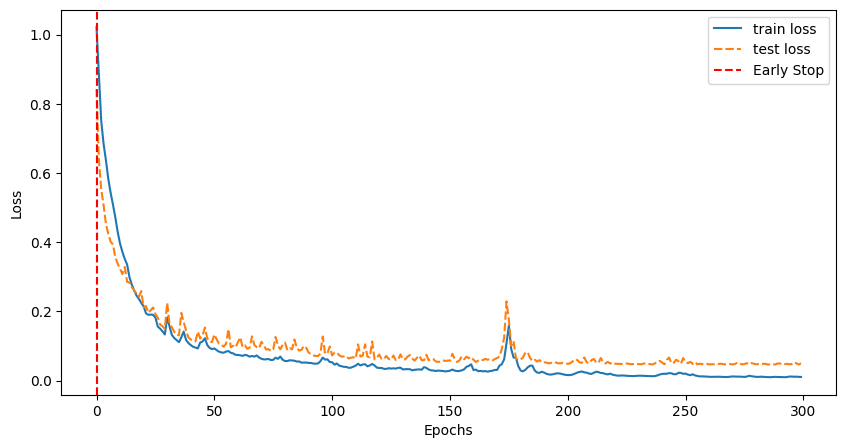

from grape_chem.plots import loss_plot
loss_plot([train_loss, val_loss], ['train loss', 'test loss'], early_stopper.stop_epoch)

epoch=298, training loss= 0.011, validation loss= 0.047: 100%|██████████| 300/300 [02:47<00:00,  1.79it/s]

As one might be able to tell from the above code, the only two things that changed was (1) we need to initialize/use data that has a valid global feature and (2) we need to specify how many global features we are adding to the model.

If global features are available, it is worth adding them!

BOHB and Hyperparameter Optimization

In this second part of the advanced demonstration, we will have a look at hyperparameter optimization, how GraPE-Chem fits in and Ray-Tune. Note that for this, we need to install the packages:

ray, ConfigSpace==0.4.18 and hpbandster==0.7.4.

Let us briefly review what the core of the BOHB algorithm is. Essentially, it consists of two parts: Bayesian Optimization [3] (BO-) and HyperBand [4] (-HB), each acting as the search algorithm and a trial scheduler respectively. Bayesian optimization leverages Gaussian processes to sample the search space in a ‘smart’ way that optimizes the evaluation metric, and while it is very powerful, it can take a long time. To offset this, BOHB adds HyperBand, which is a bandit-based trial scheduler, capable of terminating and restarting trials to maximize trial run-time efficiency. Together, these two algorithm profit from each others strengths.

For more information on the algorithm itself please see their GitHub repo (github) or their blog post reviewing their paper (blog-post).

Ray Tune

Ray (https://github.com/ray-project/ray) and specifically Ray Tune is a package offers streamlined hyperparameter optimization. For hyperparameter optimization using it, we need three things: * a parameter search space * an objective function which contains training and validation * a ray tuner

For more information on how to use BOHB with ray-tune please check out (using BOHB) and (using checkpoints).

The model we will be using is AFP and the dataset is FreeSolv. As for hyperparameters, let us optimize the learning rate, the hidden (node) representation size and the number of hidden output (MLP) layers.

Let us start with defining the search space:

import ConfigSpace as CS
config_space = CS.ConfigurationSpace()
config_space.add_hyperparameter(CS.UniformIntegerHyperparameter("mlp_out", lower=1, upper=5))
config_space.add_hyperparameter(CS.UniformIntegerHyperparameter("gnn_hidden_dim", lower=32, upper=256))
config_space.add_hyperparameter(CS.UniformFloatHyperparameter('initial_lr', lower=1e-5, upper=1e-1));

Now we need to define an objective function. Specifically, this function needs to (1) take a configuration dictionary config holding the trial hyperparameters, (2) load a model based on that config-dictionary and (3) load the correct data. All of this needs to happen inside the function, as Tune will need to load multiple different instances of data and models.

import os
import tempfile
from grape_chem.models import AFP
from grape_chem.datasets import FreeSolv
from grape_chem.utils import return_hidden_layers, train_epoch, val_epoch, set_seed
from torch_geometric.loader import DataLoader
from ray.train import Checkpoint

# Seed everything
set_seed(42)

def trainable(config: dict, device:torch.device):
        """ The trainable for Ray-Tune.

        Parameters
        -----------
            config: dict
                A ConfigSpace dictionary adhering to the required parameters in the trainable. Defines the search space of the HO.
            device: torch.device
        """

        ################ load the data ##############
        data = FreeSolv()
        train_set, val_set, _ = data.split_and_scale(scale=True, split_type='random')
        train_data = DataLoader(train_set, batch_size = 300)
        val_data = DataLoader(val_set, batch_size = 300)

        ################ load the model ##############

        # Get mlp hidden layers
        mlp = return_hidden_layers(config['mlp_out'])

        # Define the model
        model = AFP(node_in_dim=data.num_node_features,edge_in_dim=data.num_edge_features, hidden_dim=config['gnn_hidden_dim'], mlp_out_hidden=mlp)
        model.to(device=device)


        # We define training stuff
        optimizer = torch.optim.Adam(model.parameters(), lr=config['initial_lr'], weight_decay=1e-6)
        early_Stopper = EarlyStopping(patience=30, model_name='random', skip_save=True)
        scheduler = lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.999, min_lr=1e-10, patience=10)
        loss_function = torch.nn.functional.l1_loss

        iterations = 300

        start_epoch = 0

        # HyperBand uses checkpoint, so we need to check whether to load one
        checkpoint = train.get_checkpoint()

        if checkpoint:
            with checkpoint.as_directory() as checkpoint_dir:
                model_state_dict = torch.load(
                    os.path.join(checkpoint_dir, "model.pt"),
                    # map_location=...,  # Load onto a different device if needed.
                )
                model.module.load_state_dict(model_state_dict)
                optimizer.load_state_dict(
                    torch.load(os.path.join(checkpoint_dir, "optimizer.pt"))
                )
                start_epoch = (
                    torch.load(os.path.join(checkpoint_dir, "extra_state.pt"))["epoch"] + 1
                )

        model.train()

        for i in range(start_epoch, iterations):
            # We take a training step
            train_loss = train_epoch(model=model, loss_func=loss_function, optimizer=optimizer,train_loader=train_data, device=device)
            # Then we validate that step
            val_loss = val_epoch(model=model, loss_func=loss_function, val_loader=val_data, device=device)
            scheduler.step(val_loss)

            # We check if we reached early stopping, and if so break out of the loop
            early_Stopper(val_loss=val_loss, model=model)
            if early_Stopper.stop:
                train.report({"mae_loss": val_loss})
                break

            with tempfile.TemporaryDirectory() as temp_checkpoint_dir:
                checkpoint = None

                # We save a checkpoint if we don't early stop and are on n*15 epoch
                should_checkpoint = i % config.get("checkpoint_freq", 15) == 0
                # In standard DDP training, where the model is the same across all ranks,
                # only the global rank 0 worker needs to save and report the checkpoint
                if train.get_context().get_world_rank() == 0 and should_checkpoint:
                    # === Make sure to save all state needed for resuming training ===
                    torch.save(
                        model.module.state_dict(),  # NOTE: Unwrap the model.
                        os.path.join(temp_checkpoint_dir, "model.pt"),
                    )
                    torch.save(
                        optimizer.state_dict(),
                        os.path.join(temp_checkpoint_dir, "optimizer.pt"),
                    )
                    torch.save(
                        {"epoch": i},
                        os.path.join(temp_checkpoint_dir, "extra_state.pt"),
                    )
                    # ================================================================
                    checkpoint = Checkpoint.from_directory(temp_checkpoint_dir)

                # We report the training criteria
                train.report({"mae_loss": val_loss}, checkpoint=checkpoint)

[W ParallelNative.cpp:230] Warning: Cannot set number of intraop threads after parallel work has started or after set_num_threads call when using native parallel backend (function set_num_threads)

The warning above is because we are working in the jupyter environment. The final building block to optimize is the Tuner, essentially the object that controls the training procedure:

from functools import partial
from ray import tune, train
from ray.tune.search.bohb import TuneBOHB
from ray.tune.schedulers.hb_bohb import HyperBandForBOHB

if torch.cuda.is_available():
    device = torch.device("cuda")
    gpu = 1
else:
    device = torch.device("cpu")
    gpu = 0

# Partially initialize the trainable
my_trainable = partial(trainable, device=device)

# Give the tuner CPU and GPU resources
trainable_with_resources = tune.with_resources(my_trainable, {"cpu":1, "gpu":gpu})

### Define search algorithm to be BOHB
algo = TuneBOHB(config_space,mode='min', metric="mae_loss",)

## Get the trial control algorithm
scheduler = HyperBandForBOHB(
    time_attr="training_iteration",
    max_t=10, # The iterations allowed per instance
    )

n_samples = 5 # These are the number of trials, ie. we should increase this for better results.

## Initialize the tuner
tuner = tune.Tuner(trainable_with_resources,
              tune_config=tune.TuneConfig(
                                        scheduler=scheduler,
                                        search_alg=algo,
                                        mode='min',
                                        metric="mae_loss",
                                        num_samples=n_samples),
              run_config=train.RunConfig(
                                        name="bo_exp",
                                        stop={"training_iteration": 100}),
)

That’s it! The above code is (mostly) dataset and model agnostic, so we can freely change them around. Furthermore, we can either run this locally or remote (HPC) and scale it up as much as we want. But we have to be a bit careful if we want to switch out the algorithm or scheduler, as this will change some small details.

Let us run the optimizer:

result = tuner.fit(); # We suppress the output because it is quite long, but feel free to have a look yourself.

Tune Status

Current time:	2024-06-04 16:16:18
Running for:	00:00:31.80
Memory:	11.2/16.0 GiB

System Info

Using HyperBand: num_stopped=4 total_brackets=1
Round #0:
Bracket(Max Size (n)=1, Milestone (r)=9, completed=100.0%): {TERMINATED: 5}
Logical resource usage: 1.0/8 CPUs, 0/0 GPUs

Trial Status

Trial name	status	loc	gnn_hidden_dim	initial_lr	mlp_out	iter	total time (s)	mae_loss
trainable_3bf4497d	TERMINATED	127.0.0.1:16513	120	0.00718788	2	9	2.37005	0.55558
trainable_7c881cfa	TERMINATED	127.0.0.1:16507	194	0.0731289	2	3	1.41682	0.988556
trainable_d96d6299	TERMINATED	127.0.0.1:16490	193	0.0427163	5	1	1.76742	36.4843
trainable_a9973e9d	TERMINATED	127.0.0.1:16492	82	0.0604678	5	1	1.5057	297.454
trainable_017184c1	TERMINATED	127.0.0.1:16510	120	0.0113299	2	3	1.13241	0.832729

(func pid=16485) Downloading https://deepchemdata.s3-us-west-1.amazonaws.com/datasets/SAMPL.csv
(func pid=16485) Processing...
(func pid=16485) Done!
(func pid=16490) Downloading https://deepchemdata.s3-us-west-1.amazonaws.com/datasets/SAMPL.csv [repeated 2x across cluster] (Ray deduplicates logs by default. Set RAY_DEDUP_LOGS=0 to disable log deduplication, or see https://docs.ray.io/en/master/ray-observability/user-guides/configure-logging.html#log-deduplication for more options.)
(func pid=16490) Processing... [repeated 2x across cluster]
(func pid=16490) Done! [repeated 2x across cluster]
(func pid=16503) Downloading https://deepchemdata.s3-us-west-1.amazonaws.com/datasets/SAMPL.csv [repeated 2x across cluster]
(func pid=16503) Processing... [repeated 2x across cluster]
(func pid=16492) Done!
(func pid=16503) Done!
2024-06-04 16:16:06,231 INFO hyperband.py:543 -- Restoring from a previous point in time. Previous=1; Now=1
2024-06-04 16:16:09,085 INFO hyperband.py:543 -- Restoring from a previous point in time. Previous=1; Now=1
2024-06-04 16:16:11,995 INFO hyperband.py:543 -- Restoring from a previous point in time. Previous=1; Now=1
2024-06-04 16:16:16,912 INFO hyperband.py:543 -- Restoring from a previous point in time. Previous=3; Now=1
2024-06-04 16:16:18,292 WARNING experiment_state.py:205 -- Experiment state snapshotting has been triggered multiple times in the last 5.0 seconds. A snapshot is forced if `CheckpointConfig(num_to_keep)` is set, and a trial has checkpointed >= `num_to_keep` times since the last snapshot.
You may want to consider increasing the `CheckpointConfig(num_to_keep)` or decreasing the frequency of saving checkpoints.
You can suppress this error by setting the environment variable TUNE_WARN_EXCESSIVE_EXPERIMENT_CHECKPOINT_SYNC_THRESHOLD_S to a smaller value than the current threshold (5.0).
2024-06-04 16:16:18,294 INFO tune.py:1007 -- Wrote the latest version of all result files and experiment state to '/Users/faerte/ray_results/bo_exp' in 0.0050s.
2024-06-04 16:16:18,299 INFO tune.py:1039 -- Total run time: 31.83 seconds (31.80 seconds for the tuning loop).

print('Best config is: ', result.get_best_result().config)

Best config is:  {'gnn_hidden_dim': 120, 'initial_lr': 0.007187876555629309, 'mlp_out': 2}

And that is our best set of hyperparameters for this (small) set of trials! Like mentioned, we expect the result to get better and better (up to a certain point) as we increase the number of trials.

---
